PiPiece UI

Appearance

System Config View ​

Overview ​

The System Config View provides an interactive interface for editing environment variables stored in the system configuration file (pipiece.env).

Features ​

  • Table-based configuration editor
  • Add/remove configuration entries
  • Key-value pair editing
  • Input validation
  • Save and reload functionality
  • Configuration file path display
  • Navigation back to system controls

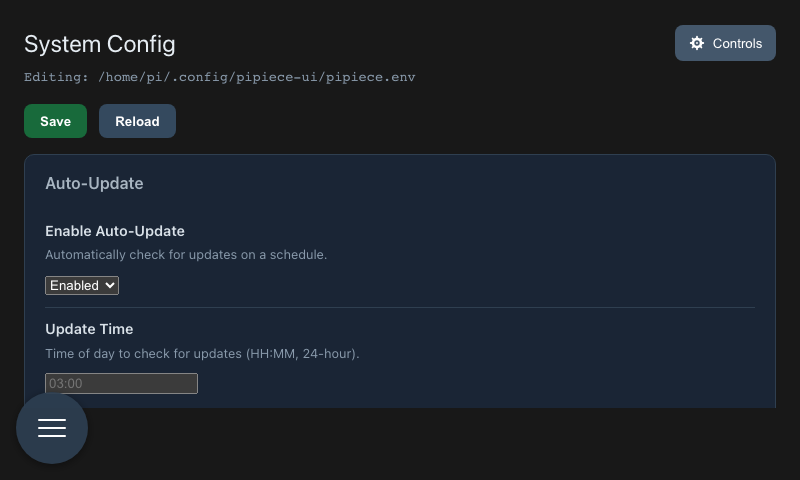

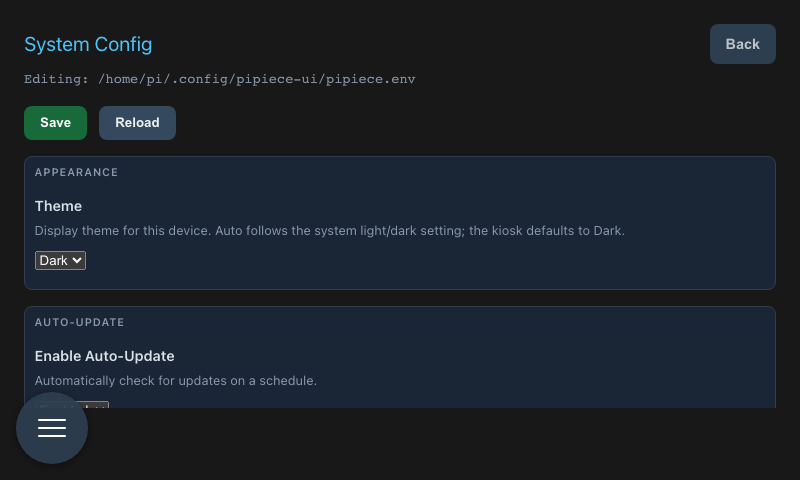

System Config View Screenshot =400x240

Access the System Config View at /system/config.

Configuration Management ​

View Configuration ​

  • Loads existing configuration on mount
  • Displays configuration file path
  • Shows all key-value pairs in table format
  • Alphabetically sorted by key

Add Configuration Entry ​

  1. Click "+ Add Row" button
  2. New empty row appears at bottom
  3. Enter key and value
  4. Click "Save" to persist

Edit Configuration Entry ​

  1. Click in key or value cell
  2. Modify text as needed
  3. Changes staged until save
  4. Click "Save" to persist

Remove Configuration Entry ​

  1. Click "×" button in row
  2. Row removed immediately
  3. Click "Save" to persist changes
  4. Removal only affects in-memory state until save

Save Configuration ​

  1. Click "💾 Save" button
  2. Validates all keys (uppercase, alphanumeric, underscores)
  3. Writes to configuration file
  4. Reloads environment variables
  5. Displays success message
  6. Table refreshes with current values

Reload Configuration ​

  1. Click "🔄 Reload" button
  2. Discards unsaved changes
  3. Reloads from configuration file
  4. Table refreshes with file values

Key Validation ​

Configuration keys must follow environment variable rules:

  • Start with uppercase letter or underscore
  • Contain only uppercase letters, numbers, and underscores
  • Pattern: ^[A-Z_][A-Z0-9_]*$

Invalid examples:

  • lowercase (must be uppercase)
  • 123VAR (cannot start with number)
  • VAR-NAME (no hyphens allowed)

Valid examples:

  • PHOTOS_DIR
  • CONFIG_DIR
  • MY_SETTING_123
  • _PRIVATE_VAR

User Interface ​

  • "System Config" title
  • Controls button (🏠) to return to system controls
  • Configuration file path display

Table ​

  • Key column (editable input)
  • Value column (editable input)
  • Remove column (× button)
  • Empty state when no rows exist

Actions ​

  • "+ Add Row" button (bottom left)
  • "💾 Save" button (saves changes)
  • "🔄 Reload" button (discards changes)

Messages ​

  • Success message (green) after successful save
  • Error message (red) on validation or save failure
  • Loading indicator during operations

Technical Details ​

  • Loads configuration via /api/config GET endpoint
  • Saves configuration via /api/config PUT endpoint
  • Merges values (non-destructive updates)
  • Reloads environment variables after save
  • Uses Vue composition API
  • Reactive state management
  • Controls Button: Returns to /system (controls view)
  • Back button always available in header
  • Maintains unsaved changes until navigation

Error Handling ​

  • Validates keys before saving
  • Displays specific validation errors
  • User-friendly error messages
  • Console logging for debugging
  • Prevents invalid configuration

Configuration File ​

  • Default location: ~/pipiece/config/pipiece.env
  • Format: KEY=value (one per line)
  • Sorted alphabetically on save
  • Reloads into environment on save

Common Use Cases ​

  • Setting PHOTOS_DIR path
  • Configuring CONFIG_DIR location
  • Adding custom environment variables
  • Adjusting application defaults
  • Runtime configuration changes without restart
